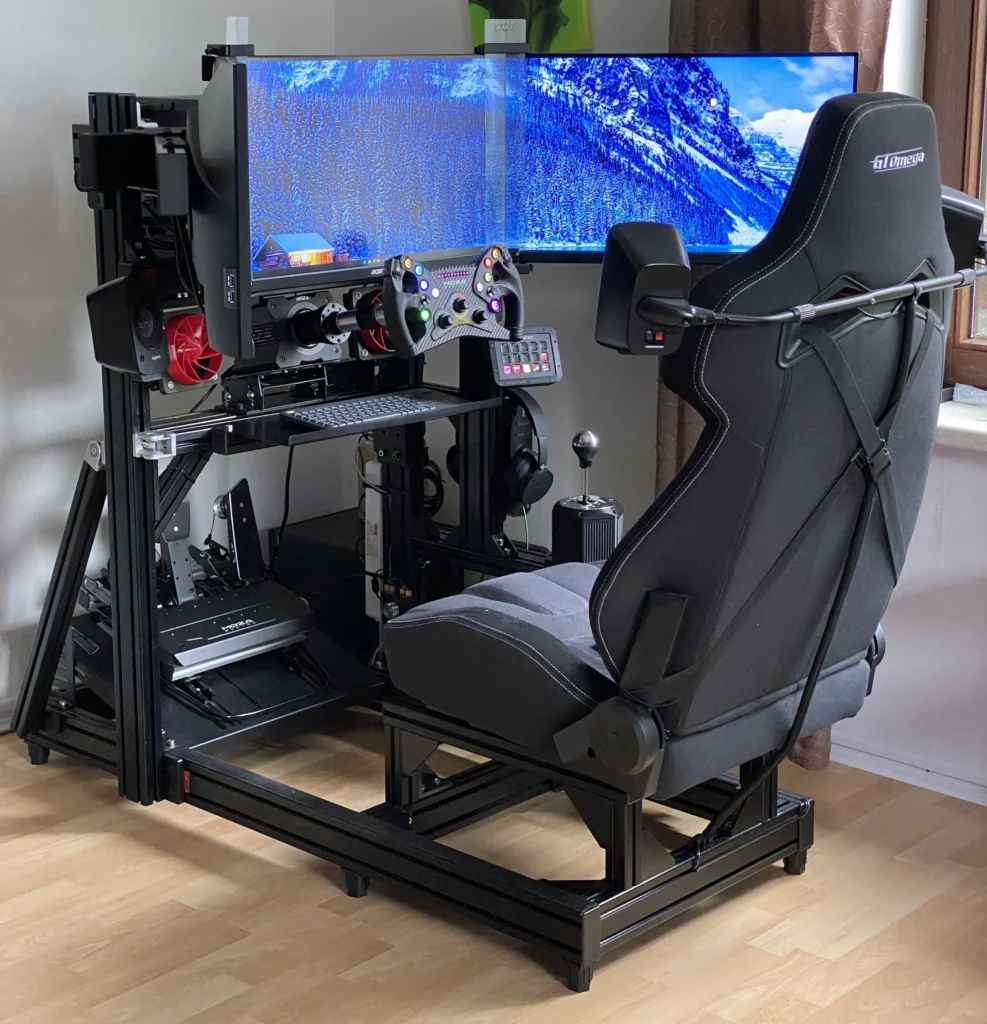

Best Ways to Use a Mobile Triple Screen Setup for Sim Racing

Sim racing has evolved from a casual gaming hobby into a highly sophisticated, data-driven motorsport simulation. To achieve true immersion and competitive lap times, drivers require an expansive field of view (FOV) and immediate access to telemetry data. Traditionally, building a panoramic cockpit meant purchasing three identical high-refresh-rate desktop monitors or an expensive, power-hungry ultra-wide panel. However, an innovative, flexible alternative has taken the sim racing community by storm: utilizing mobile devices, tablets, and portable displays to construct a versatile, space-saving display environment.

By integrating mobile hardware into your racing rig, you unlock a highly customizable telemetry and display ecosystem. Whether you aim to render a full 180-degree peripheral view or position precise telemetry dash clusters directly behind your steering wheel rim, mobile screen arrays offer unparalleled modularity.

This technical guide breaks down the architecture, mathematical calibration, network engineering, software protocols, and physical integration necessary to design, deploy, and optimize a high-performance multi-display simulation cockpit.

1. Architectural Blueprint: The Core Framework

Implementing mobile devices within a simulation environment requires an understanding of the two primary configuration architectures: Panoramic Simulation Rendering Mode and Auxiliary Data Matrix Mode. Choosing the correct framework determines your software pipeline, GPU compute requirements, and physical mounting geometry.

       [Sim Racing Host PC]
                │
        ┌───────┴───────┐
        ▼               ▼
 [Graphics Pipeline]   [Telemetry Server / UDP Engine]
        │               │
  (Space Desk /         (SimHub / JRT / Z1)
   Virtual Display)     │
        │               ├───────────────┬───────────────┐
        ▼               ▼               ▼               ▼
   [Left Display] [Center Dash]  [Right Display] [Aux Matrix]

Panoramic Simulation Rendering Mode

In this configuration, your host PC treats the connected mobile screens as standard hardware display outputs, stitching them together into a unified resolution landscape via virtual display drivers. This lets you span the actual 3D game engine window across multiple physical mobile panels.

Because mobile devices vary widely in pixel densities (PPI) and aspect ratios, this mode relies heavily on precise rendering matrices and custom viewport calculations within the simulation engine (such as Assetto Corsa Competizione or iRacing) to prevent image stretching or scale mismatches across different panels.

Auxiliary Data Matrix Mode

Instead of rendering the game world on the mobile screens, this architecture utilizes the devices as dedicated telemetry displays, intelligent track maps, real-time leaderboard matrices, and electronic button boxes. The game engine runs on a primary monitor while broadcasting raw telemetry data packets over UDP or TCP network sockets.

Dedicated server applications intercept these packets, format them instantly, and stream highly responsive HTML5 or proprietary app interfaces directly to the mobile web browsers or client applications running on the mobile devices. This completely bypasses the GPU rendering pipeline, ensuring zero performance drops on the host machine.

2. Choosing Your Hardware Pipeline

Building an agile, reliable multi-screen setup requires carefully selecting your display components. You can combine existing smartphones, high-resolution tablets, or dedicated portable monitors.

Panel Technology & Response Times

When sourcing screens, prioritize IPS (In-Plane Switching) or OLED (Organic Light-Emitting Diode) panels. Traditional TN panels suffer from severe color shifting and contrast degradation when viewed at an angle—a fatal flaw when mounting flanking screens at 45 to 60 degrees relative to your seating position.

Additionally, check the display refresh rate capability: while dedicated portable monitors offer 120Hz to 144Hz panels with low response times, standard mobile devices are typically locked at 60Hz. When mixing refresh rates, configure your graphics pipeline carefully to avoid micro-stuttering on your auxiliary panels.

To learn more about optimizing mobile hardware performance, verifying hardware compatibility, and troubleshooting device connection issues, browse the structural repair guides available at iFixit UK.

3. Physical Layout, Ergonomics, and FOV Math

A common mistake when setting up multiple screens is positioning them based on visual aesthetics rather than geometric accuracy. To ensure your peripheral vision accurately judges braking markers, corner apexes, and overtaking cars, you must compute your physical layout using a Field of View (FOV) calculation matrix.

The Trigonometric FOV Formula

To calculate the exact horizontal field of view ($FOV_H$) for a single screen panel, use the following inverse trigonometric function:

Where:

• $W$ = The viewable horizontal width of the screen panel (excluding bezels).

• $D$ = The exact distance from the driver’s eyes to the screen surface.

For a triple configuration, the side screens must be angled so they are perfectly perpendicular to your line of sight when turning your head to look directly at them. The mathematically perfect side-screen angle ($\theta$) relative to the center screen plane is dictated by:

                [Driver's Eyes]
                     / | \
                    /  |  \
                   /   |   \
                  /    D    \
                 /     |     \
                /      |      \
  [Left Screen] ───────┴─────── [Right Screen]
  ◄───── W ────► [Center Screen] ◄───── W ────►

Mount Engineering & Ergonomics

Mobile devices are lightweight, which opens up unique mounting possibilities. You can use articulated tablet arms, 3D-printed steering wheel column brackets, or magnetic ecosystem mounts (like MagSafe).

Ensure the center display aligns vertically with your eyes; the middle of the screen should sit flush with your horizon line. Any misalignment forces unnatural neck tilt, causing fatigue during long endurance sessions.

4. Software Orchestration and Virtual Drivers

To convert mobile screens into functional PC display outputs, you must deploy a robust software virtualization layer. Here is a breakdown of the leading solutions for software orchestration.

Spacedesk Architecture

Spacedesk uses a driver architecture that installs a virtual network display adapter onto the Windows OS. The host software compresses the desktop rendering frame buffer into specialized network packets and sends them over TCP/IP to client apps running on Android, iOS, or HTML5 engines.

Duet Display & Twomon SE

For zero-latency performance, Duet Display and Twomon SE bypass the standard local wireless network entirely. They utilize direct USB Mobile Tethering protocols, establishing point-to-point communication via Apple Mobile Device Services or Android Debug Bridge (ADB) routing layers. This minimizes signal degradation and maximizes frame-rate stability.

Wired vs. Wireless Data Transmission Profiles

While modern Wi-Fi 6 (80802.11ax) routers offer high data throughput, the shared wireless spectrum is highly prone to interference, packet drops, and jitter. For competitive racing, a wired USB interface is highly recommended.

[Host System Framebuffer]
         │
         ▼
[NDIS Virtual Driver Compression]
         │
         ▼ (Encapsulated TCP/IP Stream)
[USB Tethering Interface / USB-C Controller]
         │
         ▼ (Hardware Demuxing)
[Mobile Device Hardware Video Decoder]
         │
         ▼
[Panel Display Output (Zero Jitter)]

5. Network Optimization and Latency Mitigation

If your physical layout forces you to use a wireless network for your mobile screen array, you must tune your network configuration to prevent rendering lag.

Router Configuration Rules

1. Dedicated SSID: Create an isolated 5GHz or 6GHz wireless band exclusively for your sim racing hardware. Do not connect smart TVs, mobile phones, or household appliances to this channel.

2. Channel Width Expansion: Force the router to use an 80MHz or 160MHz channel width rather than the standard 20MHz/40MHz auto-selection. This widens the data pipe, allowing high-resolution frame buffers to travel unthrottled.

3. Disable Green Ethernet & QoS Polling: Turn off energy-saving modes and Quality of Service features on your host network interface card (NIC). These features often introduce micro-delays when inspecting data packets.

Windows Network Adapter Tuning

Open your network adapter advanced properties panel via the Device Manager and apply the following optimization values:

┌───────────────────────────────────────────────┐
│ Network Adapter Advanced Properties           │
├───────────────────────────────────────────────┤
│ Interrupt Moderation         --> DISABLED     │
│ Receive Side Scaling (RSS)   --> ENABLED      │
│ Jumbo Packet                 --> 9014 Bytes   │
│ Packet Coalescing            --> DISABLED     │
└───────────────────────────────────────────────┘

Disabling Interrupt Moderation forces the network card to process incoming and outgoing data packets instantly, reducing overall latency at the cost of a minor increase in CPU utilization.

6. Step-by-Step Installation & Configuration Workflow

Follow this step-by-step installation workflow to configure a stable, virtualized mobile triple screen array.

Prerequisites & Host Environment Preparation

• Ensure the host Windows machine is connected to the primary network switch via a Cat6 or Cat7 Ethernet cable.

• Update your GPU drivers to the latest stable release (NVIDIA GeForce Game Ready / AMD Software Adrenalin).

• Enable Hardware-Accelerated GPU Scheduling (HAGS) within Windows Settings under Display > Graphics.

Software Deployment Sequence

7. Telemetry Engine Integration

If you choose the Auxiliary Data Matrix Mode, you can tap into the deep telemetry data streams provided by modern racing simulations.

The SimHub Ecosystem

SimHub is the industry-standard software tool for extraction, formatting, and dashboard compilation. It captures live telemetry parameters directly from memory hooks or UDP output ports.

[Simulation Engine Output]
      │
      ▼ (Telemetry Packet Broadcast)
[SimHub Core Server Dashboard Processing Engine]
      │
      ├─► [Mathematical Dash Computations (Wheel Slip, Delta Times)]
      │
      ▼ (Internal Web Server Compilation on Port 8888)
[HTML5 WebSocket Engine / Canvas Painter]
      │
      ▼ (Wired/Wireless Stream)
[Mobile Client Browser Rendering Core]

Key Telemetry Variables to Map

When configuring your mobile auxiliary dashboards, prioritize mapping these data channels to maximize your on-track situational awareness:

• Tyre Core Core Temperatures ($T_C$): Displayed as an inner, middle, and outer matrix (IMO) to track camber wear and thermal degradation in real time.

• Live Delta ($\Delta t$): A continuous comparison calculation against your personal best lap time, updating at a frequency of 60Hz.

• Brake Bias Percentage ($BB_{pct}$): Displays your current front-to-rear brake pressure distribution, allowing you to quickly adjust settings for changing fuel loads.

• Wheel Slip Ratio ($S_R$): Highlights when tyres cross their maximum grip threshold, helping you fine-tune your traction control inputs.

8. Graphics Pipeline & GPU Profiling

Spanning a live 3D simulation window across multiple screens significantly increases your GPU workload. To maintain a smooth frame rate, you must optimize your rendering pipeline parameters.

Resolving Multi-Projection Vector Overhead

When driving a panoramic view, standard rendering engines stretch pixels at the screen edges due to perspective distortion. To combat this, modern sim titles use Simultaneous Multi-Projection (SMP) or Triple Screen Rendering algorithms.

This engine feature splits the 3D scene into three independent viewports, each calculated with its own camera frustum matrix based on your physical side-screen angles.

   Traditional Single Frustum Rendering (Distorted Peripherals)
   [     Left View     ][     Center View     ][     Right View     ]
   \─────────────────────────── Single Plane ───────────────────────────/

   Multi-Projection Frustum Axis Control (Perspective Correct)
     /                                                               \
    /  Viewport Left Layer                                            \ Viewport Right Layer
   [  Left Camera Matrix  ]──[ Center Camera Matrix ]──[ Right Camera Matrix ]

Enabling this feature corrects perspective distortion across all panels, but it forces the GPU to process three independent geometry passes simultaneously. To keep your frame rate high, reduce performance-heavy settings like shadow maps, dynamic reflections, and global illumination.

9. Comparative Evaluation Matrix

Before investing in additional hardware, evaluate how a mobile multi-screen configuration stacks up against traditional display solutions.

Performance and Cost Breakdown

10. Practical Implementation Scenarios

To help choose the best layout for your driving style, consider these proven configuration templates.

The GT3 Sprint Specialist Setup

This layout uses a standard 27-inch desktop monitor as your primary windshield view, flanked by two 10-inch Android tablets running Spacedesk. The tablets are angled inward at exactly 52 degrees, extending your peripheral vision to show passenger-side windows and blind spots.

The Formula Open-Wheel Telemetry Rig

Designed for precise vehicle management, this configuration pairs an ultrawide main display with an old smartphone mounted directly to the steering wheel hub, acting as an active Formula-style steering dash display.

A larger secondary tablet sits above the main screen, displaying a live track map, tire temperature matrices, and sector delta times via SimHub web sockets.

11. Troubleshooting & System Validation

When streaming video signals and telemetry over virtual USB network interfaces, you may encounter connectivity or stability issues. Use this diagnostic matrix to quickly identify and resolve system bottlenecks.

Troubleshooting Network and Signal Bottlenecks

                    [Signal Stutter / Frame Dropping]
                                   │
                    Is it a Network or GPU Bottleneck?
                                   │
         ┌─────────────────────────┴─────────────────────────┐
         ▼ (Network Issue)                                   ▼ (GPU Issue)
[Jitter / Ping Spike Detected]                    [Render Frametime > 16.6ms]
         │                                                   │
   Apply Adjustments:                                  Apply Adjustments:
   1. Lower Encoding Bitrate (Spacedesk)              1. Turn Down Shadow Maps / Reflections
   2. Force USB Tethering Protocol                    2. Match Frame Caps to Lowest Panel Hz
   3. Change Jumbo Frame Value                        3. Enable AMD FSR / NVIDIA DLSS

Resolving Frame Drop Issues

• Symptoms: Screens freeze momentarily, or telemetry values update erratically.

• Root Cause: The host CPU is hitting processing limits while encoding video frames, or the USB hub is saturated.

• Resolution: Lower the Spacedesk compression quality setting from 4:4:4 color depth to 4:2:0 color sampling. This slashes the required transmission bandwidth by up to 50% with minimal impact on text legibility. Additionally, move your primary display cables onto dedicated USB controllers rather than daisy-chaining them through a single external hub.

12. Conclusion: Making an Informed Decision

Building an agile, multi-screen sim racing cockpit using mobile hardware is an efficient, cost-effective way to boost both immersion and performance. By leveraging old smartphones, tablets, or portable displays, you gain critical track awareness and deep telemetry insight without the financial layout or space requirements of traditional desktop triple-monitor setups.

Whether you configure your screens for wide panoramic rendering or use them as dedicated telemetry dashboards, success comes down to careful planning and precise calibration:

• Calculate your physical field of view angles mathematically to ensure true-to-life spatial tracking.

• Deploy wired USB connections whenever possible to guarantee minimal latency and prevent frame drops.

• Optimize your network adapter settings and lower background encoding burdens to keep your system running smoothly under heavy racing loads.

With these optimizations in place, your custom mobile display array will deliver a responsive, highly detailed digital cockpit, helping you sharpen your driving inputs and shave valuable tenths off your lap times.
